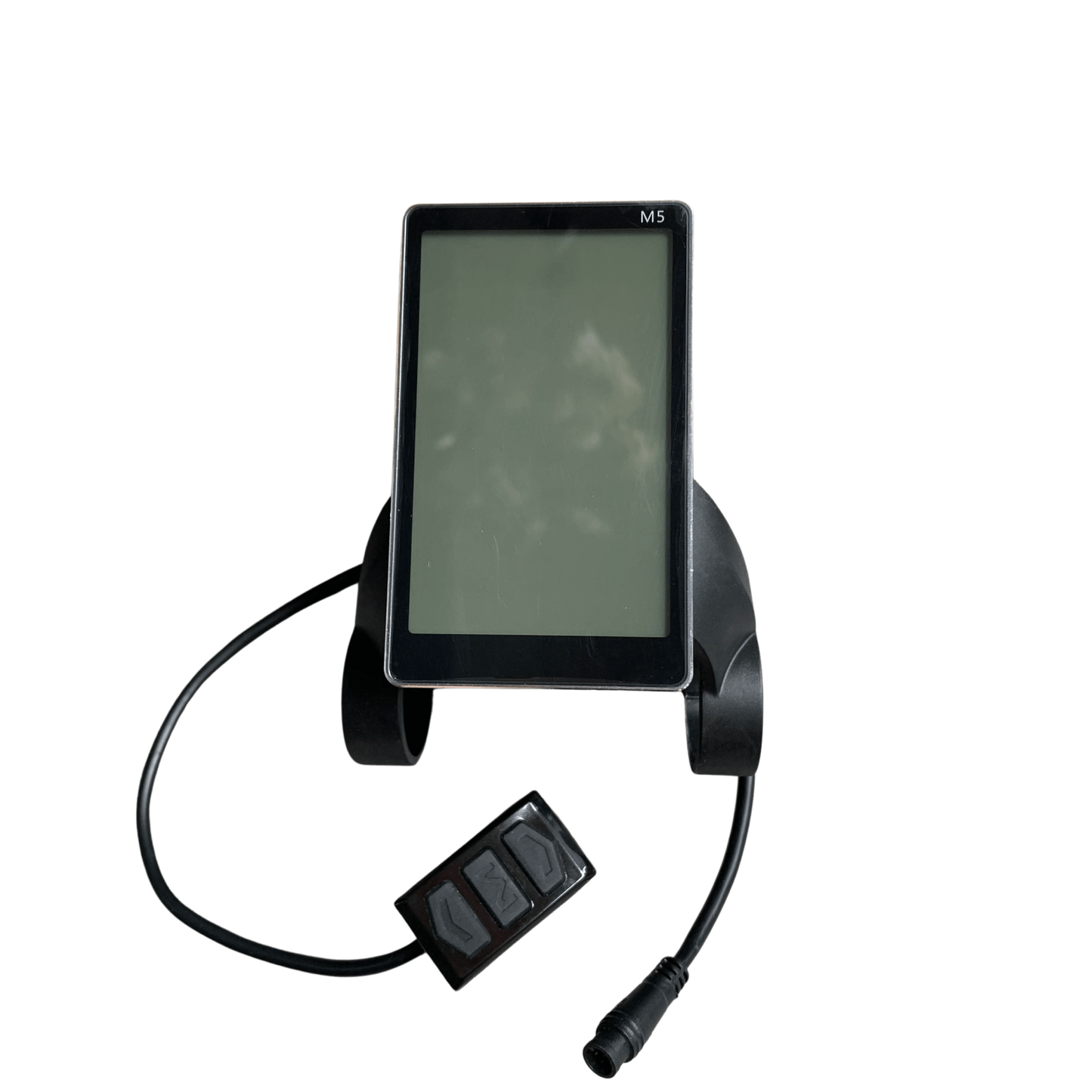

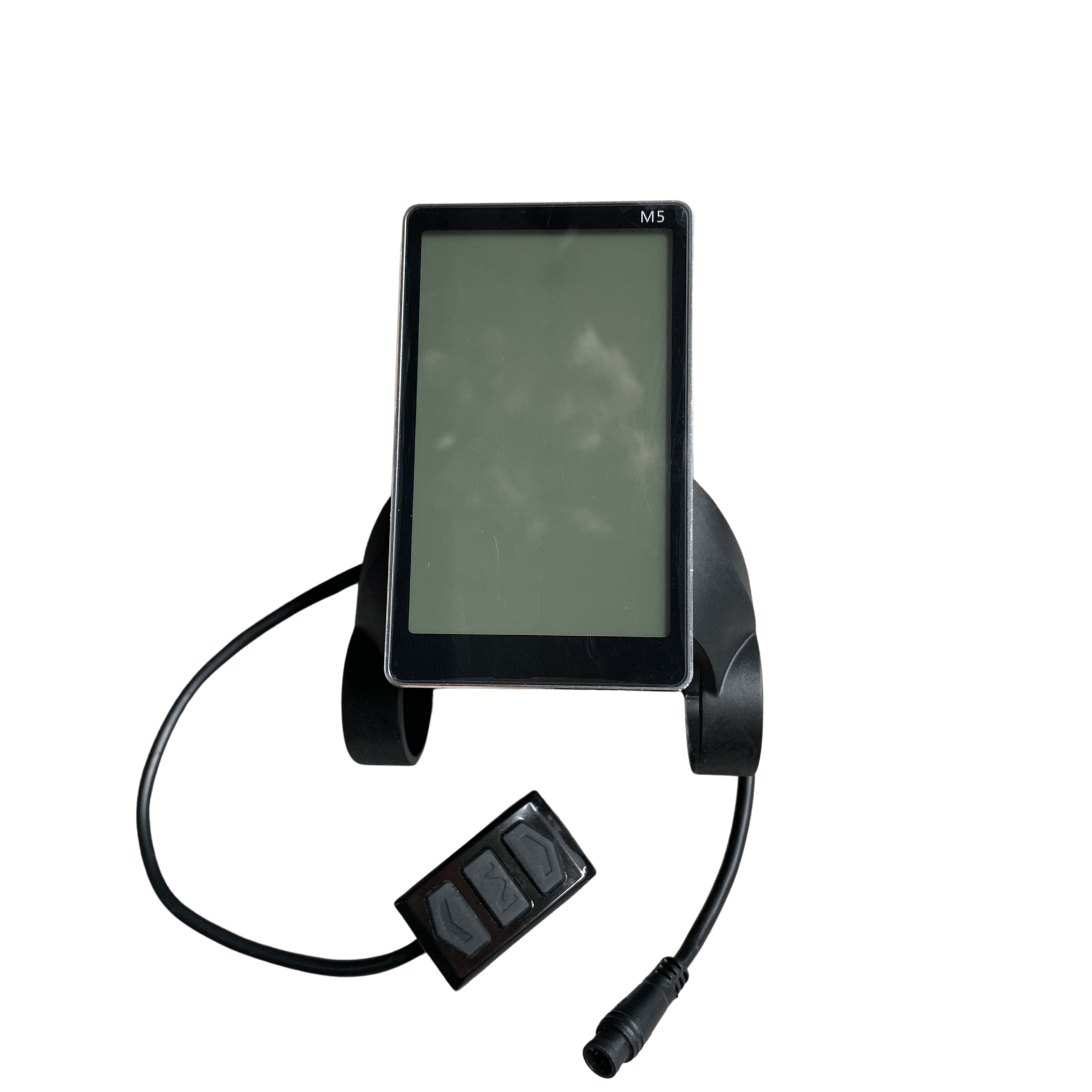

LCD M5 display

AKEZ Ebikes display M5

1.Exterior Parameters
Casing Material: ABS
Display Material: High Hardness Acrylic (the same hardness value as tempered glass)
2.Operating Voltage and Connections
a.Operating Voltage: DC24V / 36V / 48V / 60V / 64V by display setting. Other operating voltage can be customized.
3. Functions
a. Display
Speed Display, PAS Level Display, Battery Level Display,
Error Indication, Total Mileage, Single Mileage, Single Running Time
Light Signal
b. Control and Settings
Power Switch, Front Light Control, 6km/h Inching Control, Wheel Diameter Setting, Top Speed Setting, Auto-Hibernation Interval, Backlight Brightness Setting, Voltage Level Setting
c. Communications Protocol: UART
